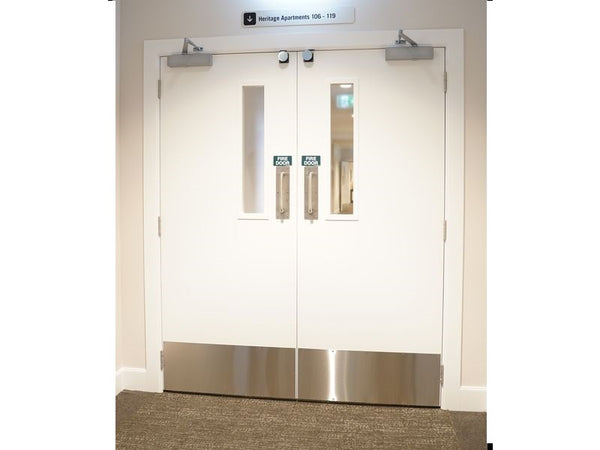

Best Doors PC60 Door Set -/60/60sm

The Best PC60 is a side hung door set. The door set configuration may be single leaf or pair, finished with a variety of facings and hung in a steel or timber frame.

The thickness of the PC60 door leaf is 48mm with an approximate leaf weight of 27kg/m2

Notes:

Please note that the maximum leaf width shown above is measured per door leaf.

The ‘sm’ above denotes that the door is available as a smoke control door set.

Meeting styles for doors installed into Speedwall are restricted to J-Section or Bullnose.

Timber jambs are not possible for doors installed into Speedwall or James Hardie

Insulation ratings must be notified at time of pricing for steel frames. Maximum insulation ratings shown.

Some wall applications will have a maximum 30 minute insulation rating.

Door sets with leaves larger than 2700 x 1200 are not intended for frequent use, we recommend they be typically either held open or closed with compliant hardware in normal operation.

JHETGJ60 is the only approved James Hardie fire rated wall system.

Fire
